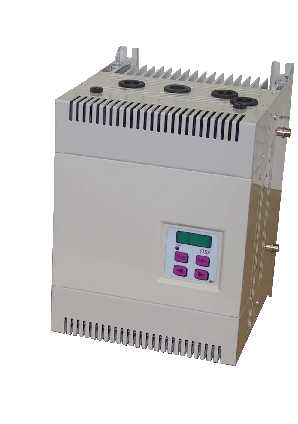

Technique | |
Alimentation | 400 V AC |
Alimentations disponibles sur demande | 220 V AC/ 500 V AC/ 690 V AC |
Réglage | Numérique sur 3 phases |
Start/Stop | Contact net /Tensions esterna |
Fin démarrage | Contact NO |
Signalisation de l'état | Contact NO |
Interface de communication | RS - 232 / RS - 485 |
Fonctions | Double moteur - Double rampe |
Économie énergétique | Présent |
By-Pass | Possibilité en option |
Paramètres | Écran pour programmation et visualisation de tous les paramètres |
Code | Descriptionarticle |
4.740.186 | Clavier de programmation |
4.740.187 | Câble I = 500 mm pour commande à distance |
Technique | |
Alimentation | 400 V AC ± 15% / 60 Hz ± 3% |
Alimentations disponibles sur demande | 500 V AC/690 V AC |
Réglage | Commande analogique Partialisation de 3 phases |
Kick-Started | Pour charges avec source inertie |
Configurations | Calibrages avec un accès direct aux paramètres de travail et l'accès interne aux caractéristiques particulières |
ContrôleCourant | maxime Courant |
Décélération | Contrôlée - Possible hors circuit |
Commande de marche | Circuit isolé |
Tensions servizi Monophasé | 230 V AC ± 15% |
Contrôle avviamento | Rampe de tension limitée à la valeur maximale I max |
By-Pass | Intégré |
Contrôle arresto | Couple sélectionnable: libre ou à rampe de tension avec couple positif |
Code | Tensions Entrée | Isolés |
7.810.014 | 24 V AC | Non isolé |
7.810.016 | 24 V AC | Isolé |
7.810.017 | 220 V AC | Isolé |
Code | Tensions Entrée | Isolés |
7.810.018 | 24 V AC | Non isolé |
7.810.019 | 24 V AC | Isolé |
7.810.020 | 220 V AC | Isolé |
Code | Tensions Entrée | Courant nominale | Courant maxime 10” |
4.740.099 | 400 V AC | 12 A | 50 A |
4.740.100 | 400 V AC | 22 A | 80 A |
4.740.101 | 400 V AC | 30 A | 50 A |
4.740.102 | 400 V AC | 50 A | 120 A |
4.740.103 | 400 V AC | 80 A | 160 A |
4.740.104 | 400 V AC | 110 A | 250 A |
4.740.105 | 400 V AC | 150 A | 370 A |
4.740.106 | 400 V AC | 180 A | 500 A |
4.740.107 | 400 V AC | 220 A | 600 A |
4.740.108 | 400 V AC | 270 A | 700 A |
4.740.109 | 400 V AC | 350 A | 950 A |
4.740.136 | 400 V AC | 500 A | 1800 A |
4.740.110 | 400 V AC | 600 A | 2000 A |
4.740.111 | 400 V AC | 800 A | 3000 A |
4.740.137 | 400 V AC | 1000 A | 4000 A |
4.740.138 | 400 V AC | 1200 A | 5000 A |
Code | Tensions Entrée | Courant nominale | Courant maxime 10” |
4.740.365 | 400 V AC | 15 A | 60 A |
4.740.366 | 400 V AC | 22 A | 88 A |
4.740.367 | 400 V AC | 30 A | 120 A |
4.740.368 | 400 V AC | 45 A | 180 A |
4.740.369 | 400 V AC | 60 A | 2400 A |
4.740.370 | 400 V AC | 72 A | 2900 A |
4.740.371 | 400 V AC | 85 A | 340 A |
4.740.372 | 400 V AC | 105 A | 400 A |
